预绞式拉线耐张线夹

预绞式拉线耐张线夹用于固定杆塔、铁塔、微波塔拉线的拉线线夹，可替代目前在线路塔杆上常用的固定拉线的楔形线夹等。

商品名称：预绞式拉线耐张线夹

所属分类：

产品咨询：

产品描述

预绞式拉线耐张线夹用于固定杆塔、铁塔、微波塔拉线的拉线线夹，可替代目前在线路塔杆上常用的固定拉线的楔形线夹等。
独特的设计使拉线耐张的结构简单，性能可靠，安装后线夹预绞丝双腿绞合形成的空管缠绕在拉线上可产生极强的握紧力，绞环用以固定在地锚或塔杆上。
Pretwisted tension cable damps are used to fix the cables of towers, iron towers,andmicrowave towers, and can replace the commonly used wedge shaped cableclamps for fixingcables on line towers. The unique design makes thetensionresistant structure of the stay wire simple and relable in performance.Aterinstalation,the pre twisted legs of the wire clamp twstogether to formanempty tube that can generate extremely tronggriping force whenwrappedaround the stay wre.The twistringis used to fixit on the ground anchor or tower pole.

特点/Characteristic
1)线夹强度高，握力可靠。线夹握力强度不小于95UTS(绞线计算拉断力)。
2)线夹对绞线应力分布均匀，不损伤绞线，提高了绞线抗振能力，大大延长了导线的使用寿命。
3)安装简单，便于施工。可大大缩短施工时间，无需任何专用工具，一人即可完成操作。
4)线夹的安装质量易于保证，用肉眼即可进行检验，不需专门训练。
5) 耐腐蚀性好，选用优质材料。材质与导线完全一致，保证线夹具有较强的抗电化学腐蚀的能力。
6)可选配防盗环，有效解决防盗问题。
1)Thewire clamphashigh strength and relable gipstrength.The gripstrength of the wire clamp shall not be lessthan 95?TS (calculated tensil strength of the stranded wire).
2) The stessdistribution ofthe wire camp on the twisted wireis uniform,without damaging the twisted wire, which improves the vibration restance of the twisted wire and greatly extends the service life of the wire.
3)Easyinstalation and easy construction.It can greaty shorten construction time without the needfor any specalized tools, and can be completed by one person.
4) The installtion quality of the wire clampis easy to ensure,and can beinspected with the naked eye without the needfor specialized training.
5) Good corrosion resistance, using high-qualty materals. The materalis completely consistent with the wire,ensuring that the wire clamp has strong resistance to electrochemical corrosion.
6)Optional anti theftring can effectively solve anti theft problems.

提示 /Prompt
1)由于线夹的特殊结构，线夹受力后只能使用一次，不得重复使用。
2)选配产品订货时必须提供绞线的规格型号。
3)线夹和导线的旋向应保持一致。标准的线夹是右旋，如需左旋产品须声明。
4)绞线末端应靠近绞接标记处剪断，将其掩盖在绞线管中。
1) Due to the special structure ofthe wire clamp,it can only be usedonce after being subjected toforce and cannot be reused.
2) When ordering optional products,thespecifications and models ofthetwisted wires mustbe provided.
3)Therotation direction of the wire clamp and wieshould beconsistent The standard wire clampis righthanded,andifa lefthanded productis required,it must be declared.
4) The end of the twisted wire should be cut near the splice mark andcovered in the twisted wire tube.

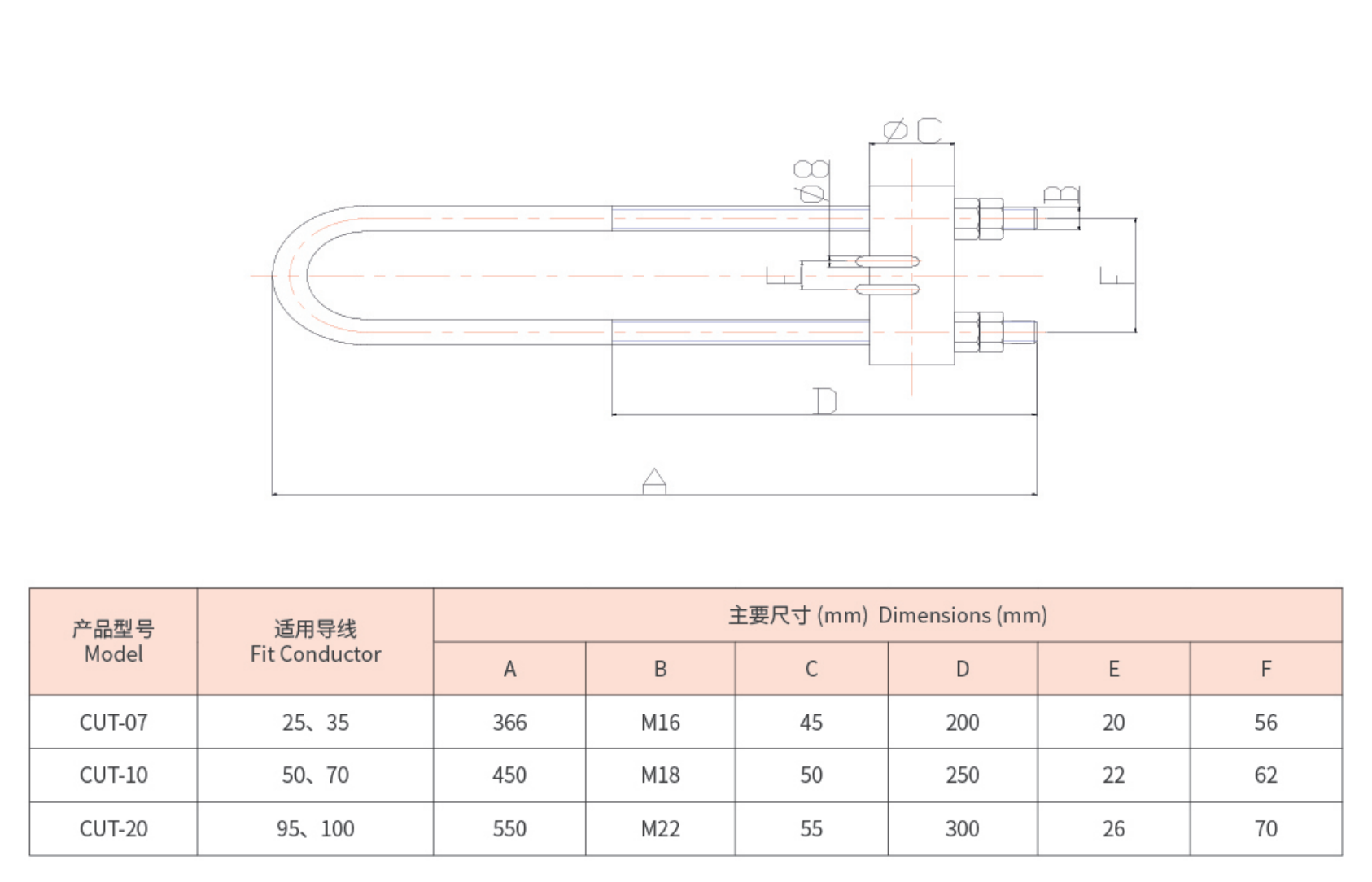

配套金具-Matched Hardware
